產品展示

車床頂尖/頂針

TSC-262高性能精密回轉頂針

HEAVY DUTY HIGH PERFORMANCE PRECISE LIVE CENTER

點擊產品圖片放大

資料下載

在線詢盤

產品詳細介紹

類型：回轉式系列
Type: Live centers series
負荷：重
Duty: Heavy

適用：CNC重型車床及重型高速車床。

Application: CNC heavy duty lathe, heavy duty high speed lathe

用途：適用長軸心重力車削加工。

Working Usage: Applicable for the long workpiece and heavy duty turning process

結 構：採用雙列滾珠精密軸承，止推軸承及滾針軸承設計，採三個支撐點特殊設計製成。

Structure: Combination of double row precise ball bearing and thrust bearing and needle bearing, with the design of three supporting points.

配件：TSC262-3A/4A/5A:Y型扳手/TSC262-6A:專用Y型扳手

Accessories: 1. For TSC262-3A/4A/5A, Y type spanner. / 2. For TSC262-6A, special Y type spanner.

精準度： 0.002mm以內

TIR: Less than 0.002mm

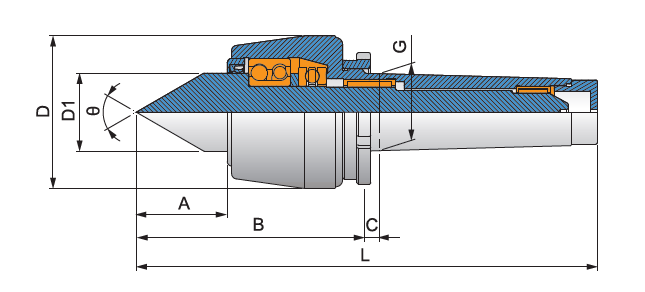

規格 / Specification? ? 單位/ UNIT：mm

型式/外表尺寸 Model/Spec	A	B	C	D	D1	G	L	?	軸承最高轉數 Max. RPM	軸承徑向力（載重） Max. radial load	軸承軸向力（推力） Max. axial thrust force
TSC-262-3A	44	116	8	58	34.8	23.825（MT3)	203	60゜	6,000rpm	1,450kg	1,800kg
TSC-262-4A	44	116	9	65	34.8	31.267（MT4)	224	60゜	6,000rpm	2,250kg	2,700kg
TSC-262-5A	53	131	9	75	44.8	44.399（MT5)	266	60゜	6,000rpm	3,620kg	3,000kg
TSC-262-6A	67	163	10	118	59.9	63.348（MT6)	353	60゜	3,500rpm	6,000kg	4,850kg

型式/外表尺寸 Model/Spec	A	B	C	D	D1	G	L	?	軸承最高轉數 Max.RPM	軸承徑向力（載重） Max. radial load	軸承軸向力（推力） Max. axial thrust force
TSC-2562-7A	121	296	10	197	100	MT7	556	60°	1000 rpm	8500	6500

備注：
本頂針指定使用SKF-LGMT2專用潤滑油，請勿使用其他不同成分之潤滑油。
產品型號中有“A”的表示頂針有附螺帽
徑向力數據參考：加工件重量+車削力量
配件中的頂針子，型號有“A”的為加長型頂針子。
軸向力據參考：尾座油壓壓力數據
非標需求可定制
保留技術更改的權利

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed

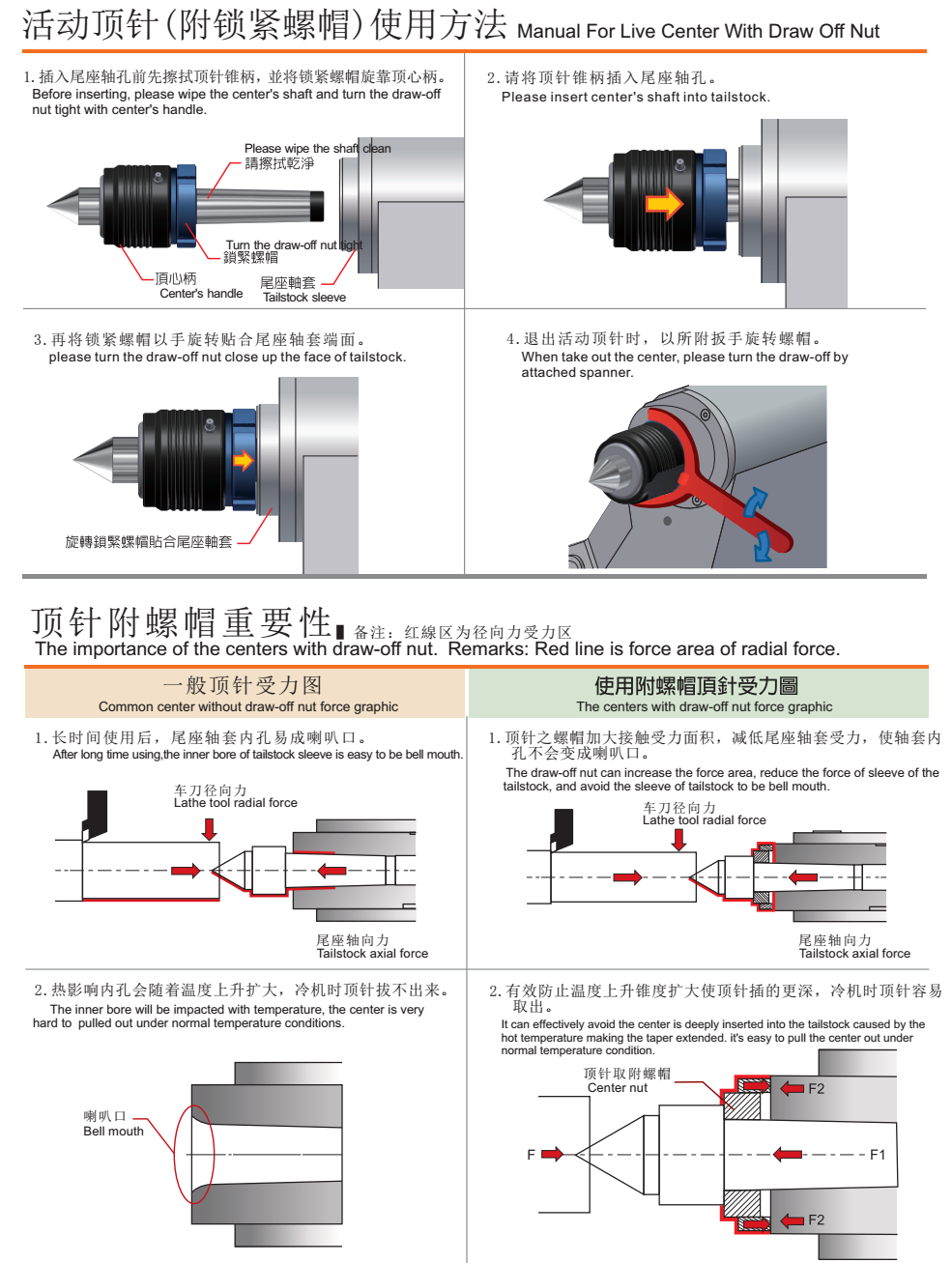

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
